在devops流程里面 構建鏡像是一個非常重要的過程，一般構建鏡像是寫dockerfile文件然后通過docker client來構建的image。
docker client 會先檢查本地有沒有image，如果沒有幫你 從鏡像倉庫 pull 下來
然后解析你寫的dockerfile構建新的image。
本文帶你了解
- pull 命令 背后是怎么做的？
- build 命令 背后是怎么做的？
下篇文章帶你解析：
如果我不用docker 我如何構建一個鏡像？
我們以微軟的aspnet2.2為基礎構建一個aspnetcore項目的鏡像為例子
mcr.microsoft.com/dotnet/core/aspnet:2.2
根據基礎鏡像REGISTRY去獲取mainfest信息
https://mcr.microsoft.com/v2/dotnet/core/aspnet/manifests/2.2
Accept:
application/vnd.oci.image.manifest.v1+json,application/vnd.docker.distribution.manifest.v2+json,application/vnd.docker.distribution.manifest.v1+json
獲取到的內容如下：
{
"schemaVersion": 2,
"mediaType": "application/vnd.docker.distribution.manifest.v2+json",
"config": {
"mediaType": "application/vnd.docker.container.image.v1+json",
"size": 4039,
"digest": "sha256:e7e3b238011ce0f2b9350153535fe273caa01f0e7188d0b91f965b3802ddc600"
},
"layers": [
{
"mediaType": "application/vnd.docker.image.rootfs.diff.tar.gzip",
"size": 22524609,
"digest": "sha256:804555ee037604c40de144f9f8da0d826d38db82f15d74cded32790fe279a8f6"
},
{
"mediaType": "application/vnd.docker.image.rootfs.diff.tar.gzip",
"size": 17692725,
"digest": "sha256:970251047358aea56ba6db6975b14ff12470b75de0c2477f4445240ddd727fd4"
},
{
"mediaType": "application/vnd.docker.image.rootfs.diff.tar.gzip",
"size": 2978257,
"digest": "sha256:f3d4c41a4fd13f35c0b46f19a4e27845f4695163cc7174d908ff84836bbc2f5a"
},
{
"mediaType": "application/vnd.docker.image.rootfs.diff.tar.gzip",
"size": 62145592,
"digest": "sha256:bd391c46585f9f8d84992bbaa9087189148c1601968eaaf097d5b3ed60840e5e"
}
]
}
mainfest文件里面都是摘要(digest)記錄
- config信息摘要
- 每個layer的摘要 （上面的例子有4個）
根據上面的config信息摘要獲取config詳情
GET:https://mcr.microsoft.com/v2/dotnet/core/aspnet/blobs/sha256:e7e3b238011ce0f2b9350153535fe273caa01f0e7188d0b91f965b3802ddc600
{
"architecture": "amd64",
"config": {
"Hostname": "",
"Domainname": "",
"User": "",
"AttachStdin": false,
"AttachStdout": false,
"AttachStderr": false,
"Tty": false,
"OpenStdin": false,
"StdinOnce": false,
"Env": [
"PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin",
"ASPNETCORE_URLS=http://+:80",
"DOTNET_RUNNING_IN_CONTAINER=true",
"ASPNETCORE_VERSION=2.2.8"
],
"Cmd": [
"bash"
],
"ArgsEscaped": true,
"Image": "sha256:5ecfe4016ac8e911a94aa601a675f7204e9ccab00cbb08e7067c184ad40f34e9",
"Volumes": null,
"WorkingDir": "",
"Entrypoint": null,
"OnBuild": null,
"Labels": null
},
"container": "14196c2f9c327d41e26682d32c7c89c4e7c78aa32f8b7501a23192035a9f4844",
"container_config": {
"Hostname": "",
"Domainname": "",
"User": "",
"AttachStdin": false,
"AttachStdout": false,
"AttachStderr": false,
"Tty": false,
"OpenStdin": false,
"StdinOnce": false,
"Env": [
"PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin",
"ASPNETCORE_URLS=http://+:80",
"DOTNET_RUNNING_IN_CONTAINER=true",
"ASPNETCORE_VERSION=2.2.8"
],
"Cmd": [
"/bin/sh",
"-c",
"curl -SL --output aspnetcore.tar.gz https://dotnetcli.azureedge.net/dotnet/aspnetcore/Runtime/$ASPNETCORE_VERSION/aspnetcore-runtime-$ASPNETCORE_VERSION-linux-x64.tar.gz && aspnetcore_sha512='954072376698be69acb7e277df2c243f931e10529def21dcbf9ce277609b30d462126bf8b8b3cab36476bec3d63a927b8e44e59e4d4cade23eef45956fba1ffd' && echo \"$aspnetcore_sha512 aspnetcore.tar.gz\" | sha512sum -c - && mkdir -p /usr/share/dotnet && tar -zxf aspnetcore.tar.gz -C /usr/share/dotnet && rm aspnetcore.tar.gz && ln -s /usr/share/dotnet/dotnet /usr/bin/dotnet"
],
"Image": "sha256:5ecfe4016ac8e911a94aa601a675f7204e9ccab00cbb08e7067c184ad40f34e9",
"Volumes": null,
"WorkingDir": "",
"Entrypoint": null,
"OnBuild": null,
"Labels": null
},
"created": "2019-12-28T08:12:05.676492579Z",
"docker_version": "3.0.8",
"history": [
{
"created": "2019-12-28T04:23:47.4966447Z",
"created_by": "/bin/sh -c #(nop) ADD file:90a2c81769a336bed3f731f44a385f2a65b0916f517a0b77c06c224579bf9a9a in / "
},
{
"created": "2019-12-28T04:23:47.719507596Z",
"created_by": "/bin/sh -c #(nop) CMD [\"bash\"]",
"empty_layer": true
},
{
"created": "2019-12-28T08:11:05.607009582Z",
"created_by": "/bin/sh -c apt-get update && apt-get install -y --no-install-recommends ca-certificates libc6 libgcc1 libgssapi-krb5-2 libicu57 liblttng-ust0 libssl1.0.2 libstdc++6 zlib1g && rm -rf /var/lib/apt/lists/*"
},
{
"created": "2019-12-28T08:11:07.64336022Z",
"created_by": "/bin/sh -c #(nop) ENV ASPNETCORE_URLS=http://+:80 DOTNET_RUNNING_IN_CONTAINER=true",
"empty_layer": true
},
{
"created": "2019-12-28T08:11:16.475068844Z",
"created_by": "/bin/sh -c apt-get update && apt-get install -y --no-install-recommends curl && rm -rf /var/lib/apt/lists/*"
},
{
"created": "2019-12-28T08:11:43.814078508Z",
"created_by": "/bin/sh -c #(nop) ENV ASPNETCORE_VERSION=2.2.8",
"empty_layer": true
},
{
"created": "2019-12-28T08:12:05.676492579Z",
"created_by": "/bin/sh -c curl -SL --output aspnetcore.tar.gz https://dotnetcli.azureedge.net/dotnet/aspnetcore/Runtime/$ASPNETCORE_VERSION/aspnetcore-runtime-$ASPNETCORE_VERSION-linux-x64.tar.gz && aspnetcore_sha512='954072376698be69acb7e277df2c243f931e10529def21dcbf9ce277609b30d462126bf8b8b3cab36476bec3d63a927b8e44e59e4d4cade23eef45956fba1ffd' && echo \"$aspnetcore_sha512 aspnetcore.tar.gz\" | sha512sum -c - && mkdir -p /usr/share/dotnet && tar -zxf aspnetcore.tar.gz -C /usr/share/dotnet && rm aspnetcore.tar.gz && ln -s /usr/share/dotnet/dotnet /usr/bin/dotnet"
}
],
"os": "linux",
"rootfs": {
"type": "layers",
"diff_ids": [
"sha256:814c70fdae62bc26c603bfae861f00fb1c77fc0b1ee8d565717846f4df24ae5d",
"sha256:0cf75cb98eb2e0a82631d4aff71b40ba79ff7f83e0361f696875e592a1a4cefc",
"sha256:15e45d99c92686fb1fd61a41431d8400d7a0e8381595d09d666b0809c4f5d993",
"sha256:579a8f1d6a123f98095c0b1a1395079f7504391fd2a8bc529dede305a2072a36"
]
}
}
根據diff_ids里面去下載對應layers
下載完后對比摘要一致，確保鏡像文件合法性
路徑規則：
https://mcr.microsoft.com/v2/dotnet/core/aspnet/blobs/sha256:XXXXXX
構建我們的鏡像
在基礎鏡像的配置基礎上加入我們的自定義配置
- Entrypoint
- Cmd
- Ports
- Environment
- ImageWorkingDirectory
- Volumes
- Labels
在基礎鏡像的所有的layers把我們要打包到鏡像也做成一個layer

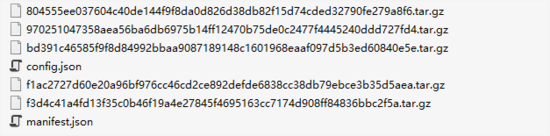

生成的鏡像tar包解壓出來

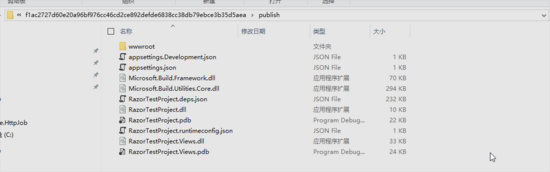

多了一個 tar.gz文件，解壓之后 就是我們打包放進去的文件
- 原來基礎鏡像有4個layer 加上我們的 共5個
- config.json
- manifest.json

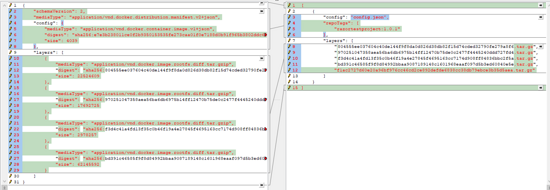

config.json對比與基礎鏡像
我們來復習下構建鏡像的過程 根據鏡像名稱拉取mainfest
- 根據mainfest拉取config
- 根據config拉取layers
- 下載各個layer
- 修改到基礎鏡像的配置(config.json和mainfest.json)
- 加入我們要加入的文件layer
知道原理后我們可以自己寫一個工具來實現整個過程
我開源的docker鏡像構建，讓你不用裝docker也能快速構建容器鏡像
支持以下鏡像倉庫作為基礎鏡像構建
